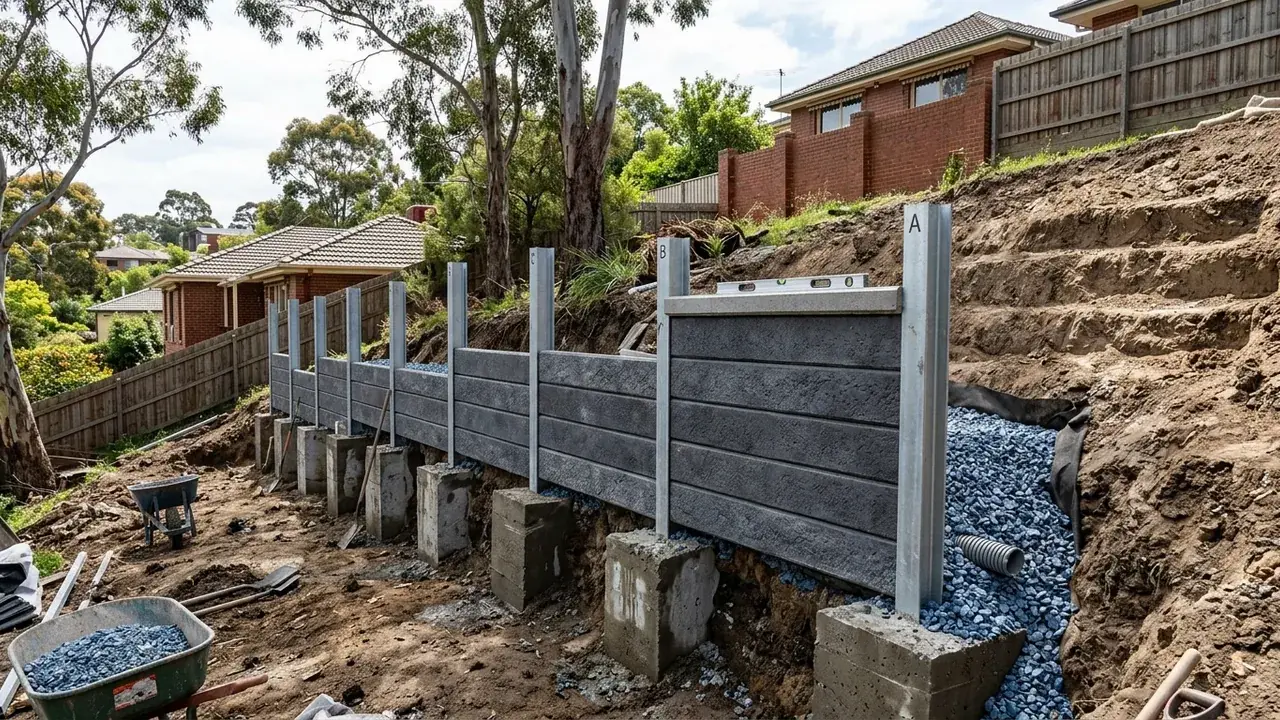

Concrete Sleeper Walls site and construction detail

Measured before specified

Concrete Sleeper Walls for Geelong properties

The complete steel-post and reinforced-sleeper system includes excavation, lifting access, drainage and the loads above the wall.

Start with the site

Retaining wall Geelong questions this service clarifies

Concrete sleeper walls can provide a compact finished face for boundaries, terraces and replacements, but the visible panels are only one part of the system. Designed post positions, embedment or footing requirements, steel selection, reinforced sleepers, capping, backfill and drainage all depend on the assessed site. The construction route also matters: posts require excavation and concrete, while heavy panels need safe delivery and placement room along the wall. Owners comparing a post-and-panel system should examine the complete scope instead of choosing from a colour sample. Concrete is not automatically the longest-lasting or most economical answer for every Geelong property.

Three project decisions

01

Set the post system from site loads

Post size, spacing, depth and foundation details follow the retained height, ground, upper loads and design. A fence, driveway or building near the top changes the input picture. Replacement work must also account for old footing locations and the safe sequence for removing the previous wall.

02

Prove the construction corridor

Measure the narrowest gate, eaves, air-conditioning units, paving and turning space from delivery point to wall. A slender completed wall may still need room for drilling, spoil handling, post placement and lifting sleepers between posts.

03

Connect drainage to an outlet

Filtered aggregate and subsoil pipe behind the panels need suitable surface grading and a lawful, maintainable discharge point. Weepholes or visible gaps alone do not explain the entire water path or protect against soil migration.

Included in a useful brief

Scope notes for concrete sleeper walls

01

Steel post installation

Steel post installation includes the designed positions, excavation, concrete placement, alignment and protection appropriate to the specified system.

02

Reinforced sleeper installation

Reinforced sleeper installation includes safe handling, seating between posts, level transitions and coordination with the retained fill sequence.

03

Capping and finish options

Capping and finish options coordinate the top edge with fences, gardens and paths without hiding the structural and drainage details below.

A visible sequence

Four steps before the wall detail is fixed

  1. 1

    Confirm geometry

    Measure length, exposed height, corners and level changes, then show the ground and loads above the proposed face.

  2. 2

    Check access

    Trace drill, concrete, post, panel and spoil movement through the property instead of assuming the gate dimension is enough.

  3. 3

    Coordinate layers

    Align post design, sleeper system, filtered backfill, pipe, outlet, surface falls and any fence interface.

  4. 4

    Compare writing

    Ask the proposal to name panel specification, steel and concrete assumptions, drainage, disposal, finishes and professional inputs.

Decision guidance

Subsoil drainage behind retaining wall systems and material choices

Boundary projects

Confirm the wall and fence arrangement, title context and access to both ends. The combined wind and retained loads belong in the design discussion rather than being split between unrelated trades.

Stepped terraces

Show the spacing and retained rise between each level. Separate walls can influence one another through load and drainage, so the lowest outlet and complete slope deserve one coordinated view.

Replacement work

Allow for removing old posts, sleepers and backfill, managing ground temporarily, inspecting concealed conditions and rebuilding the outlet. A panel-swap price can omit the difficult parts.

Risk boundaries

Retaining wall building permit and site limits

Durability shorthand

Concrete panels do not remove steel, footing, exposure, drainage or installation questions. Ask for the complete specified system and the assumptions supporting it rather than accepting a material-only durability claim.

Hidden handling cost

Heavy components and spoil can dominate a narrow site even where the finished wall is compact. Delivery position, lifting method and reinstatement should appear in the scope before work begins.

Why use this process

Evidence that keeps the quote comparable

Post details stay visible

The concealed structural work is discussed beside the finished panel choice.

Access is measured

Panel handling and drilling room are checked from street to wall.

Drainage is continuous

Backfill, filter, pipe, falls and outlet are treated as one maintainable path.

Concrete Sleeper Walls questions

Should water be visible through a concrete sleeper wall?
Controlled drainage can occur, but concentrated flow, soil loss or saturation should be investigated.
Is concrete always better than timber?
No. Required life, appearance, access, load, exposure, maintenance and future replacement influence the choice.
When does a retaining wall need a building permit in Victoria?
Building and Plumbing Commission guidance says a permit is required at 1 metre or more and for walls on or near boundaries where adjoining property could be damaged. Confirm the site with a registered building surveyor.
Where do segmental blocks fit?
They can suit low terraces and engineered reinforced-soil walls when the base, drainage and geogrid follow the designed system.
Do gabion and boulder walls need more space?
Often. Their footprint, batter and installation access can be wider than post-and-panel systems.

Concrete Sleeper Walls across Geelong

Choose a Greater Geelong area for access, water and project prompts relevant to concrete sleeper walls.

Geelong West Compact established lots and busy access routes shape how walls are demolished, built and protected. South Geelong Rail, sporting and river-edge land near the Barwon makes access and drainage outlets an early question. Newcomb Established homes and later infill leave varied boundaries, side access and existing concrete to work around. Whittington Low-lying ground and drainage corridors make surface falls and lawful discharge decisive here. Moolap Residential edges, rural land and former industrial areas call for property-specific level and soil checks. Bell Park Post-war housing and renewed lots often mean narrow machine routes and ageing boundary walls. Hamlyn Heights Undulating ground creates stepped yards where wall height, surcharge and drainage are assessed together. Herne Hill Sloping blocks put wall work close to driveways, fences and mature planting, so levels are measured first. Wandana Heights Pronounced slopes above the city can push cut-and-fill and taller retention into engineered territory. Charlemont Newer estates rely on documented lot levels, so walls, fences and house pads are reviewed together. Marshall Semi-rural remnants beside growth-area housing bring varied access, easement and stormwater constraints. Bell Post Hill Elevated streets and terraced yards put footing depth, wall rotation and drainage under close attention. Norlane Replacement walls here usually start with boundary confirmation, utilities and a material-handling plan. Drysdale Township blocks and expanding Bellarine estates bring coastal exposure and longer delivery routes. Barwon Heads Sandy coastal ground and salt exposure call for careful corrosion, erosion and drainage choices.
